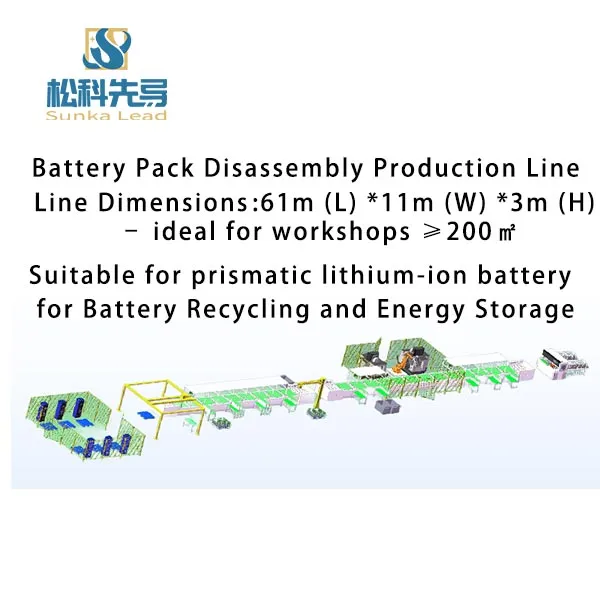

Energy Storage Battery Pack Disassembly production line: Prismatic/Aluminum Shell Battery Repurposing PACK Line

Unlock Value from Retired Batteries with Advanced Automation
As global energy storage installations exceed 200GW, the battery recycling market

for retired prismatic/aluminum shell battery packs has surged.

 SunKaLead’s Energy Storage Battery Pack Disassembly Production Line offers

a closed-loop solution for safe, efficient, and high-value battery repurposing,

 aligning with global circular economy goals.

Production Stage:Technical Specifications

Intelligent Feeding:KBK lifting + roller conveyor transmission. Compatible with 280-500kg battery packs.

Positioning accuracy: ±2mm.

Safety Pre-Treatment:Staged discharge cabinet (0-5V), liquid drainage recovery system.

 Dust explosion-proof rate: 99.9%.

Modular Precision Disassembly:Robot-assisted module removal + CNC milling center.

Aluminum alloy weld point milling efficiency ↑3x.

Cell Sorting System:OCV sorting + visual inspection. Sorting speed ≤10 seconds/cell.

Capacity consistency error ≤3%.

Data Traceability:MES system tracks full lifecycle data. Blockchain certification available (optional).

Top 5 Competitive Advantages

Full Automation

Labor intervention reduced by 70%. Single-line output up to 800 packs/day (8-hour shift).

Dual-Compatible Design

Supports prismatic/18650/21700/26650 battery packs. Die change time <15 minutes.

Green Processing

Centralized dust collection system. Wastewater recycling rate >85%. RoHS-compliant.

High-Value Repurposing

Recycled cells suitable for energy storage cabinets, low-speed EVs. Residual value ↑40%-60%.

Digital Twin Technology

QR code tracking links to ERP/MES systems. Full-process transparency for regulatory compliance.

Application Scenarios

✅ Energy Storage: Grid balancing, renewable energy storage systems

✅ Mobility: E-bikes, logistics vehicles, warehouse AGVs

✅ Backup Power: Data centers, telecom towers

Customer Testimonial

“SunKaLead’s disassembly line slashed our retirement battery processing costs by 45%, with sorted cell yield reaching 98%!”

 — General Manager, North China Battery Recycling Enterprise

For any inquiries about battery pack assembly line solutions,lithium ion battery recycling machine, please don't hesitate to contact us.
