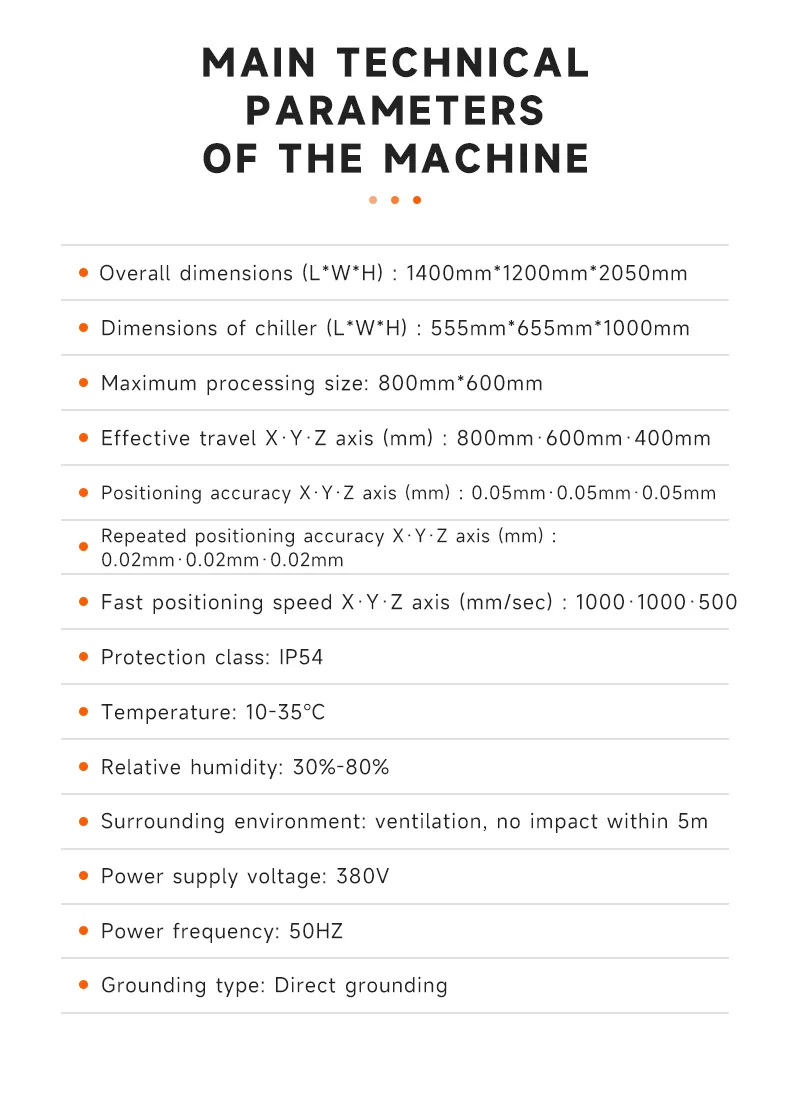

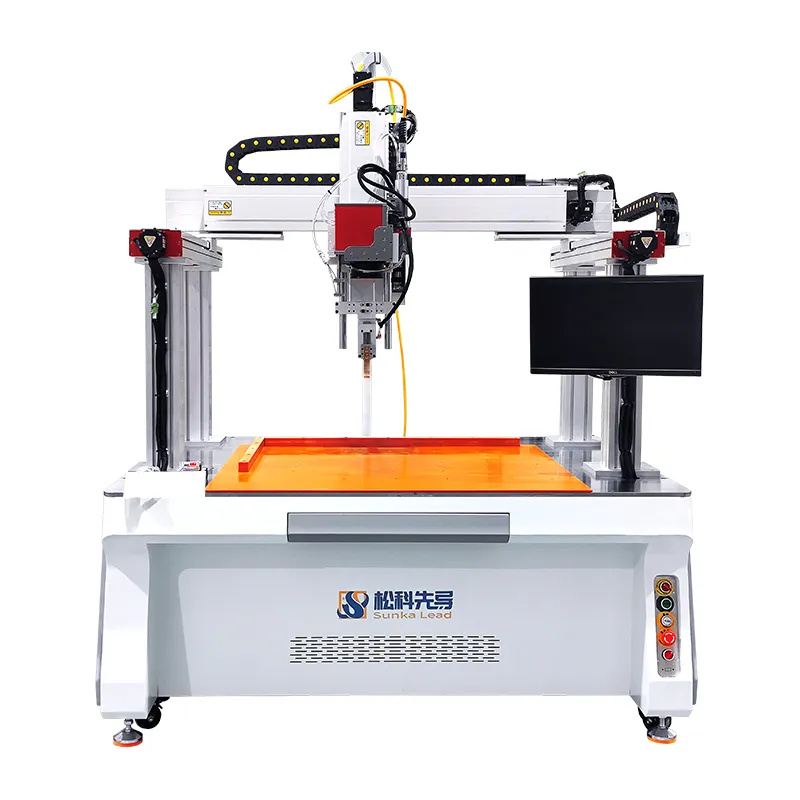

Products Description

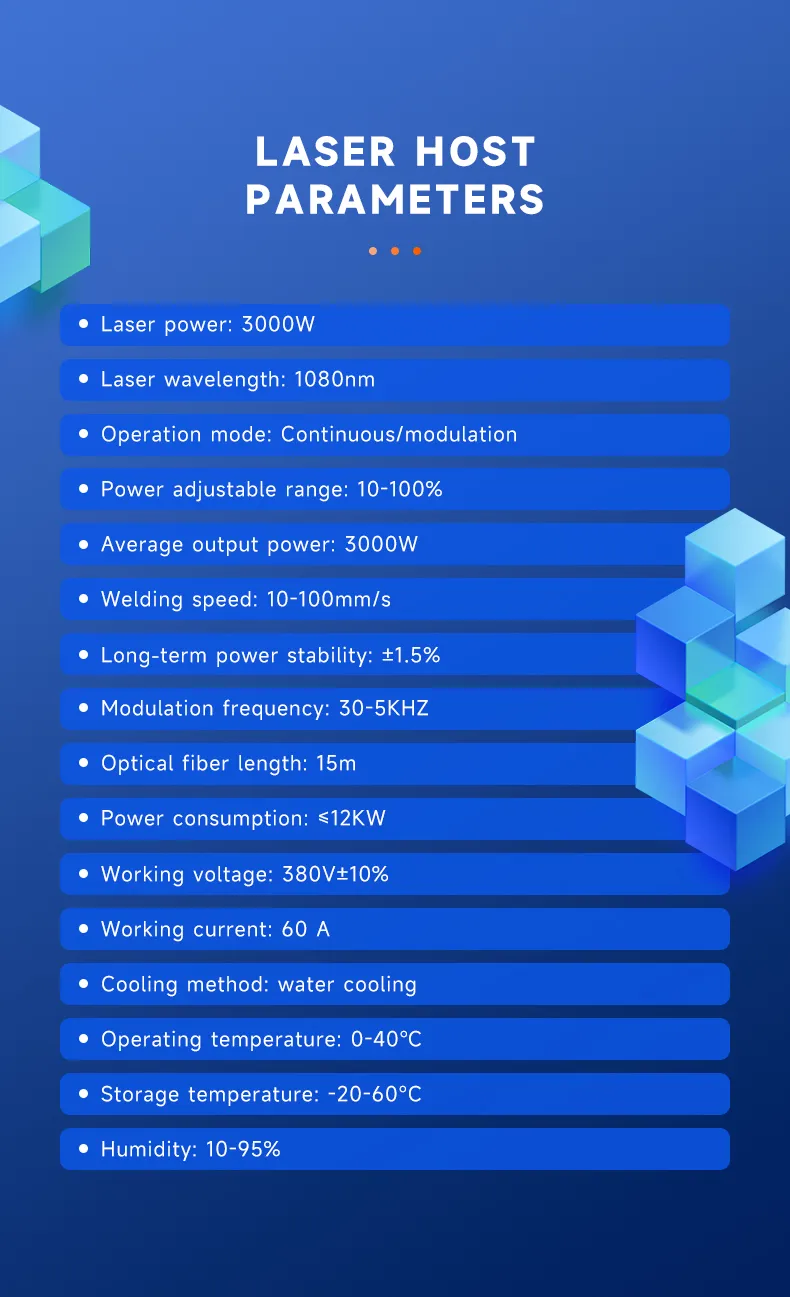

| Parameter | Specification |
|---|---|
| Laser power | 3000W |
| Laser type | Continuous fiber laser |

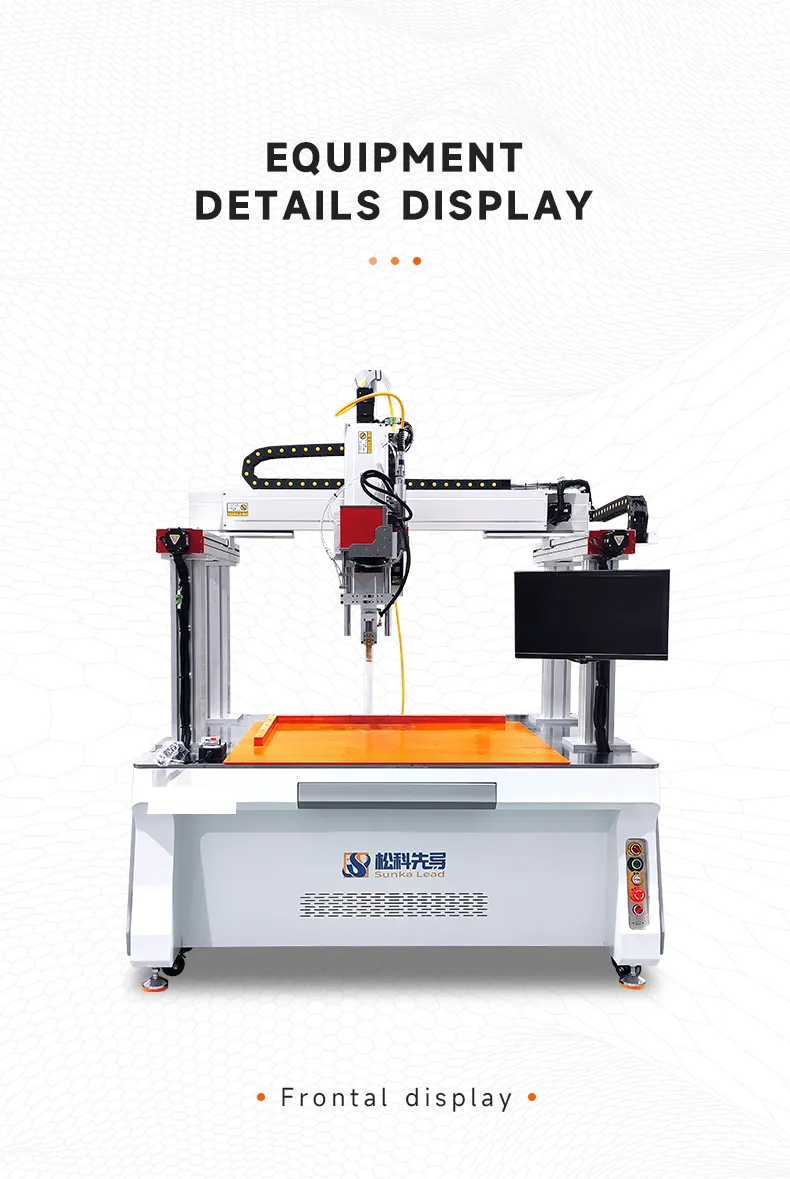

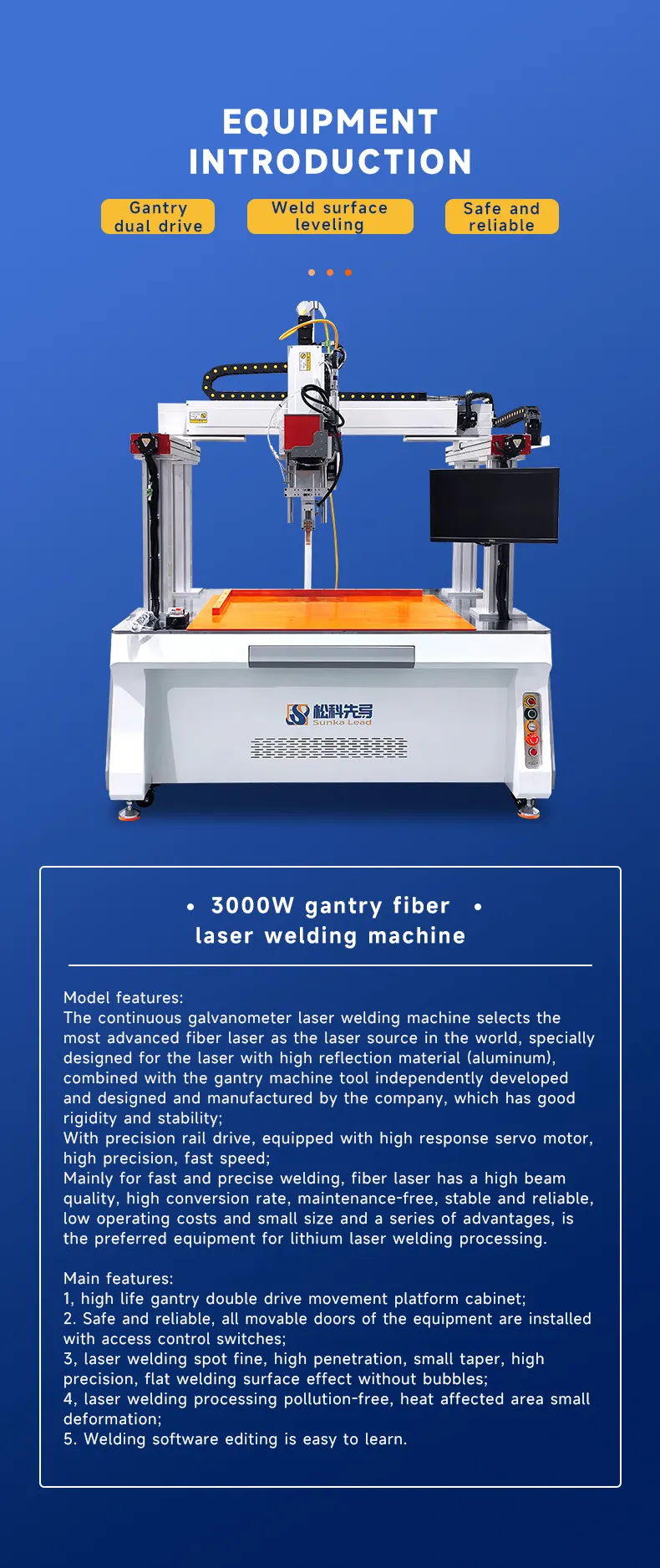

| Welding structure | Gantry + galvo welding system |
| Application | Lithium battery / battery components |
| Welding materials | Aluminum, copper, nickel |
| Max. welding thickness | Aluminum 2.5 mm, copper 1.2 mm, nickel 2.0 mm |
| Welding speed | 10–100 mm/s |
| XYZ travel | 800 × 600 × 400 mm |
| Laser wavelength | 1080 nm |
| Power adjustment | 10%–100% |
| Cooling | Water cooling |
| Control | PC control system |
| Power supply | 380V ±10% |
| Welding paths | Straight line, circle, arc and customized paths |
FAQ

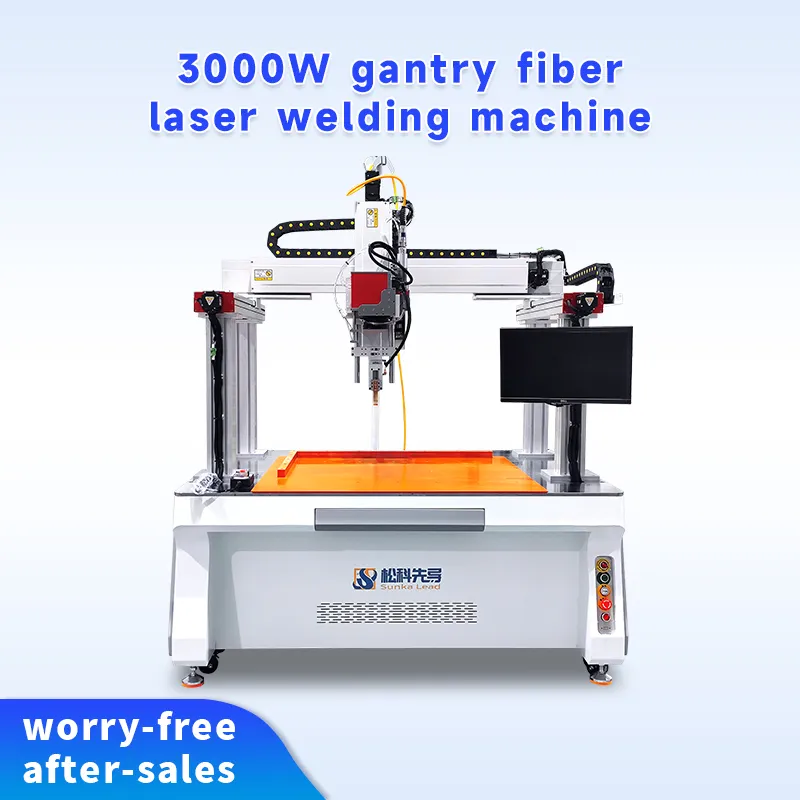

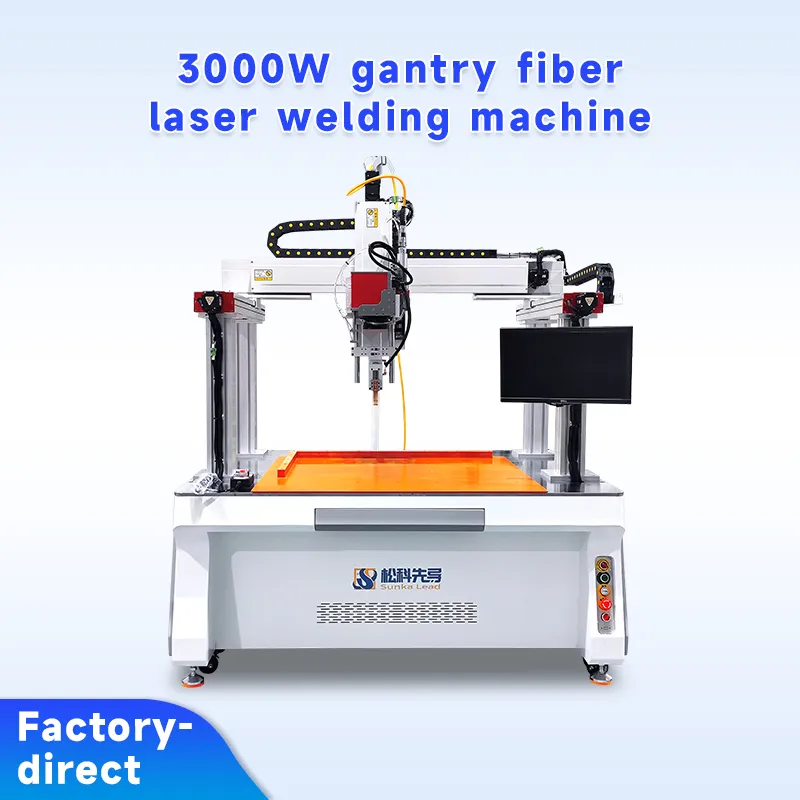

Q1.What is a 3000W gantry fiber laser welding machine used for?
A 3000W gantry fiber laser welding machine is used for automated precision welding of metal components. In lithium battery manufacturing, it can be applied to prismatic battery modules, battery pack components and metal electrical connections where stable and repeatable welding is required.
Q2.Can the machine be used for prismatic lithium battery welding?
Yes. The gantry structure and programmable welding system make the machine suitable for prismatic lithium battery module and PACK manufacturing, including applications involving aluminum battery components and metal connections.
Q3.What is the working range of the laser welding machine?
The XYZ travel is 800 × 600 × 400 mm, allowing the welding head to cover different battery components and welding positions within the working area.
Q4.Is the 3000W laser power adjustable?
Yes. The laser output can be adjusted from 10% to 100%, allowing welding parameters to be configured according to the material, thickness and welding process.
Q5.Can this laser welding machine be integrated into a battery production line?
The gantry laser welding machine can be configured for standalone operation or integrated with automated lithium battery module and PACK production equipment, depending on the required production process and automation level.
