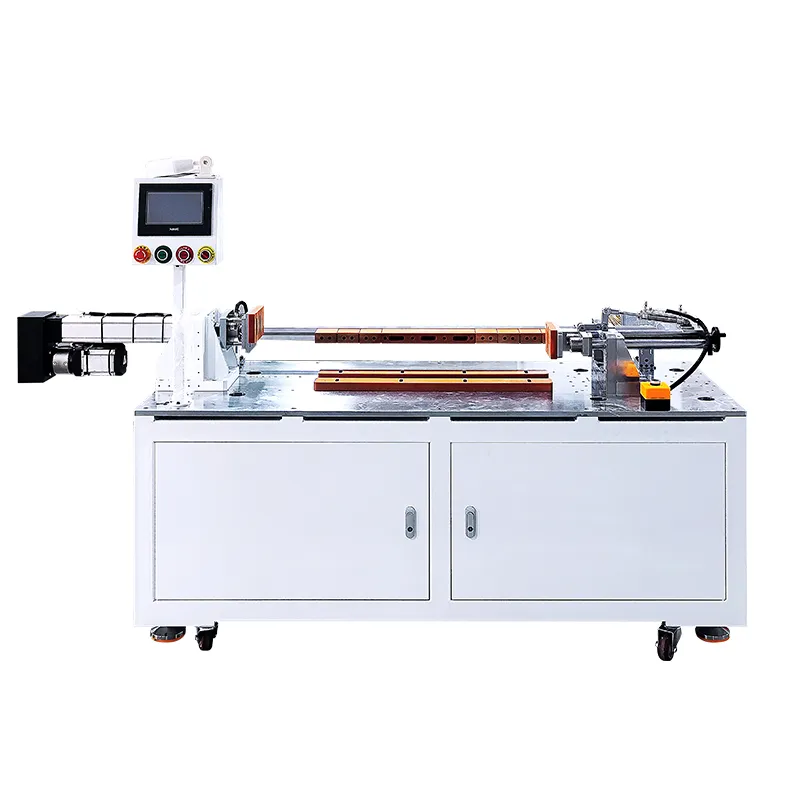

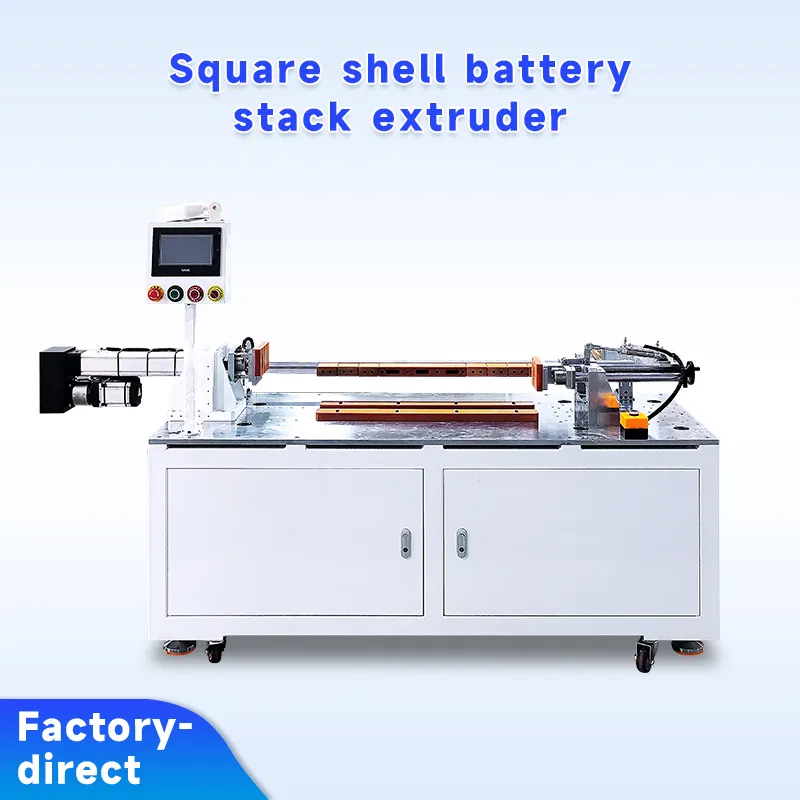

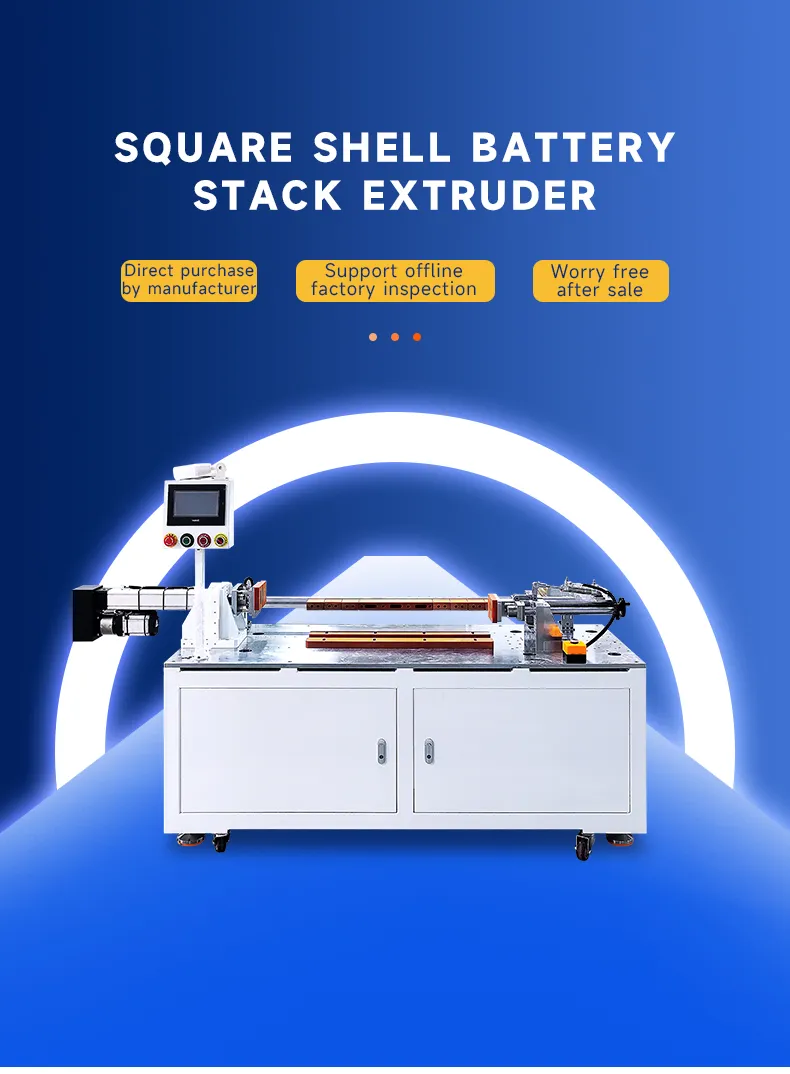

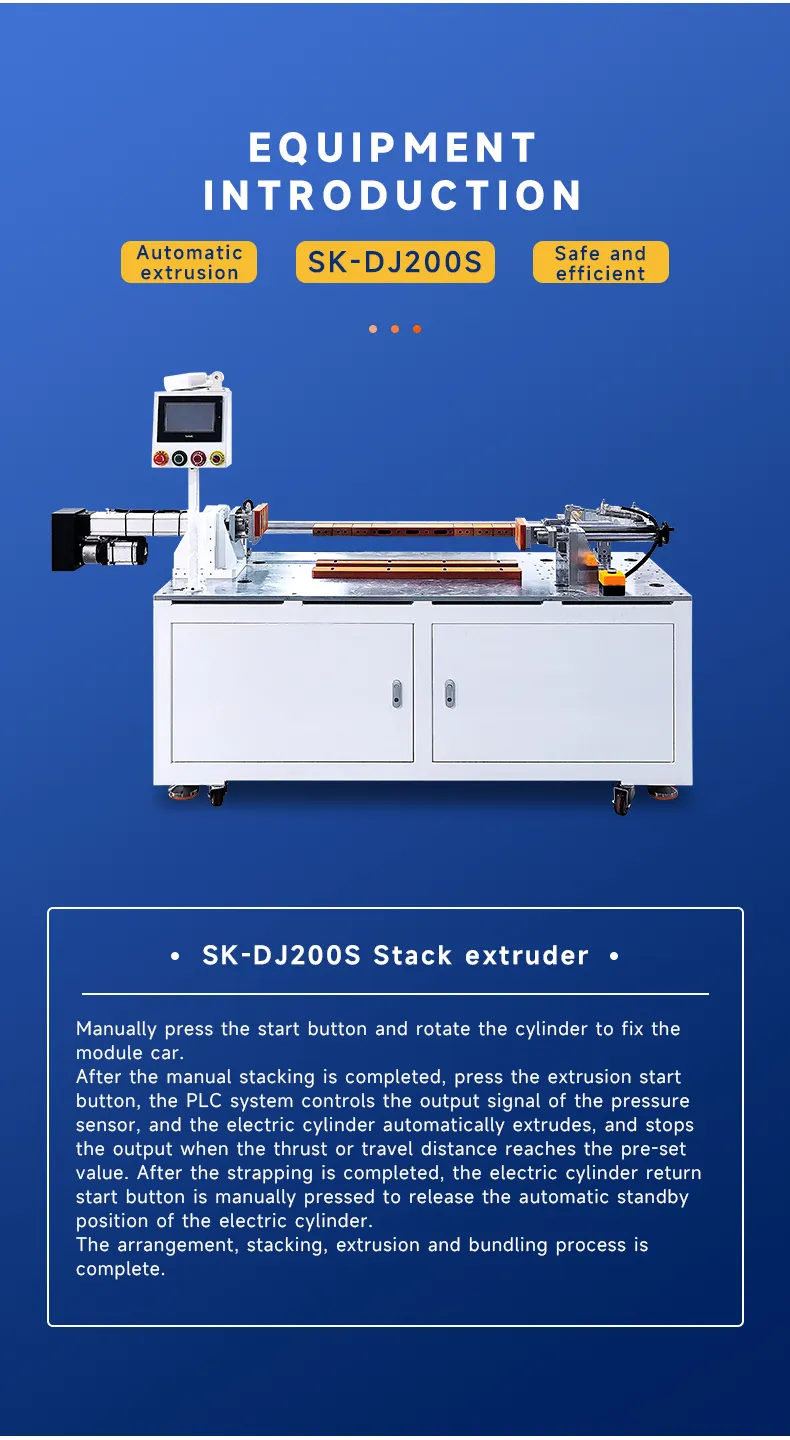

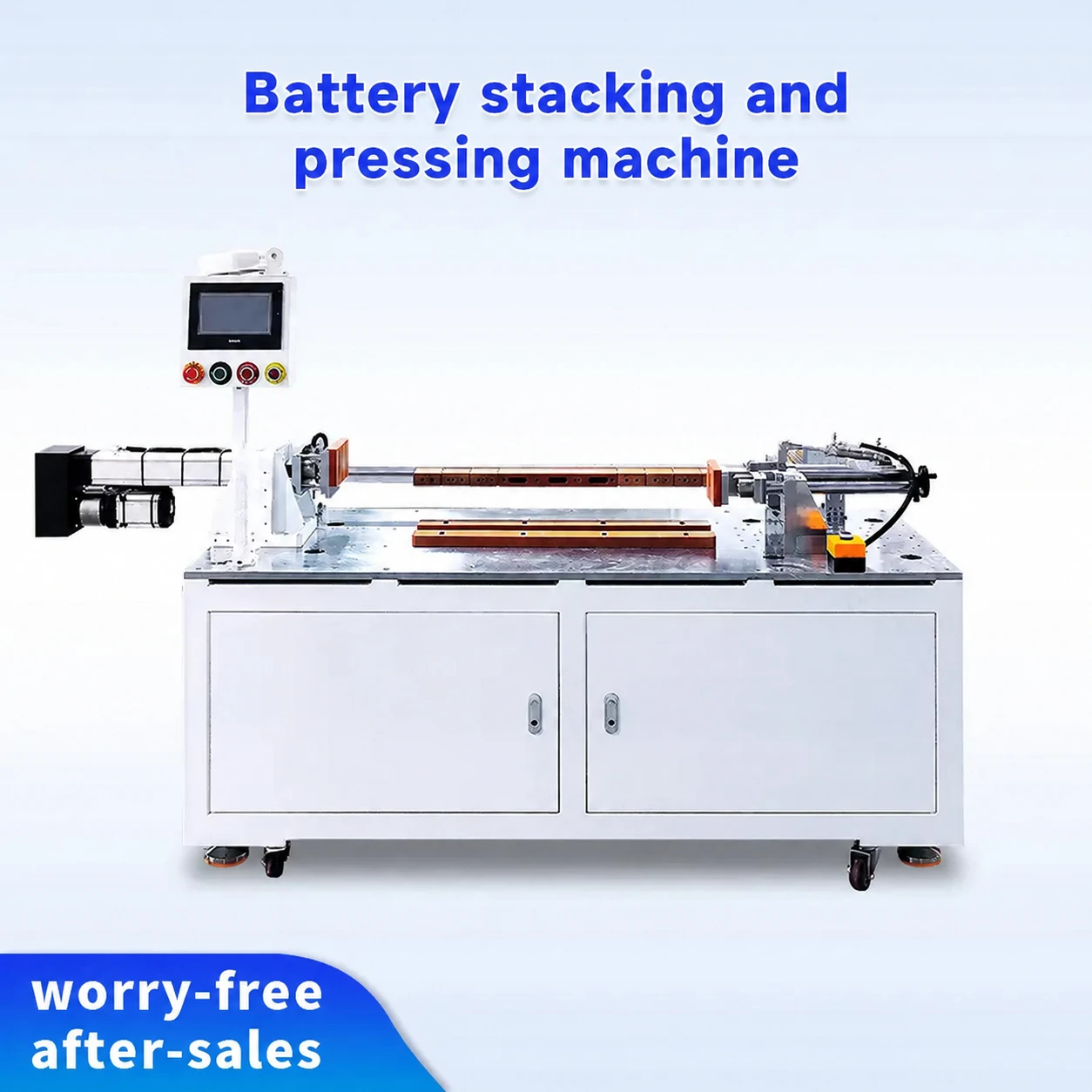

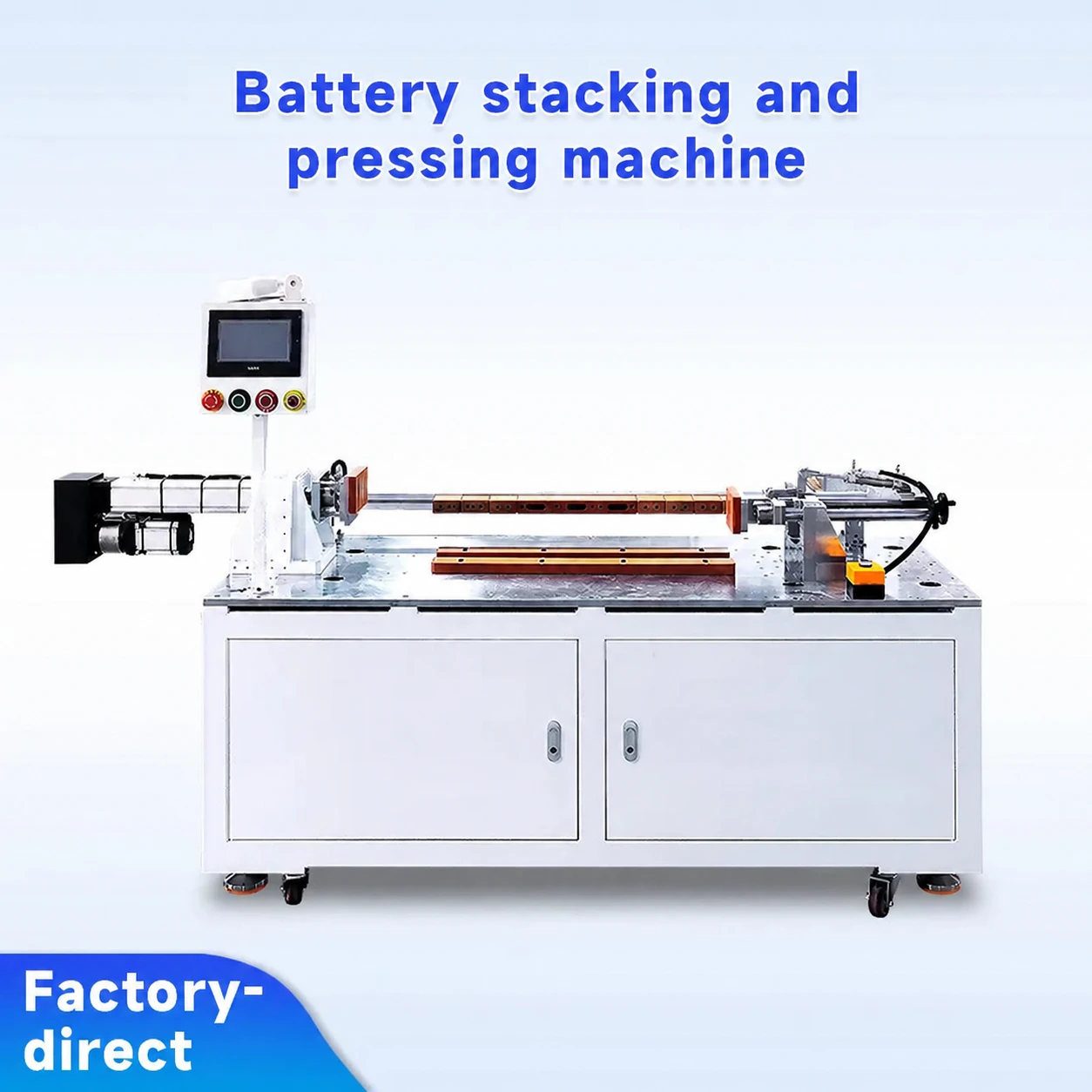

Products Description

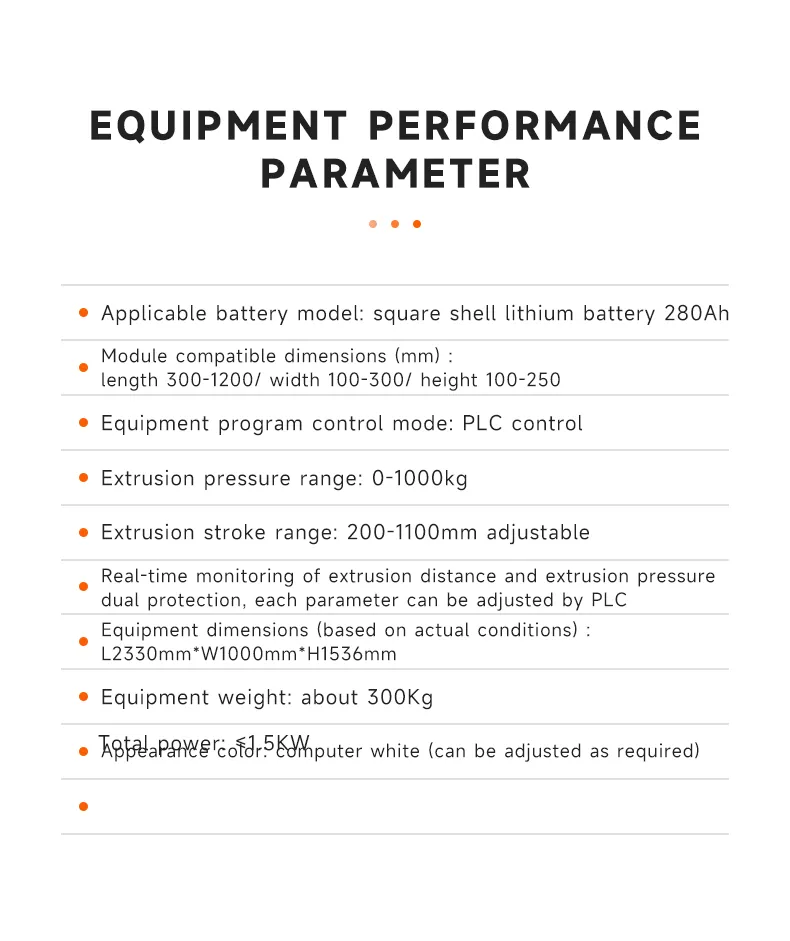

| Parameter | Specification |
|---|---|
| Applicable battery type | Prismatic lithium battery cells |
| Reference cell capacity | 280Ah-587Ah |
| Compatible module dimensions | L300–1200 × W100–300 × H100–250 mm |
| Control system | PLC control |
| Pressing force | 0–1000 kg |
| Pressing stroke | 200–1100 mm, adjustable |
| Monitoring | Real-time pressing distance and pressure monitoring |
| Equipment dimensions | Approx. L2330 × W1000 × H1536 mm |
| Equipment weight | Approx. 300 kg |
FAQ
Q1: What battery cells is this stacking and pressing machine compatible with?
This machine is designed for 280Ah-587Ah prismatic lithium battery cells. It supports battery modules with dimensions ranging from 300–1200 mm in length, 100–300 mm in width, and 100–250 mm in height.
Q2: Is the pressing force adjustable?
Yes. The pressing force can be adjusted from 0 to 1000 kg through the PLC control system according to different battery module assembly requirements.
Q3: Can the machine monitor pressing force and distance in real time?
Yes. The machine provides real-time monitoring of both pressing force and pressing distance. This dual-monitoring design helps improve process control and consistency during battery module assembly.
Q4: What battery module sizes can the machine handle?
The machine supports module dimensions of 300–1200 mm in length, 100–300 mm in width, and 100–250 mm in height. The pressing stroke is adjustable from 200 to 1100 mm.
Q5: Can the machine be customized for different battery module sizes?
Yes. The machine can be customized according to the battery cell dimensions, module size, pressing requirements, and production process. Please provide your cell and module specifications for technical evaluation.
